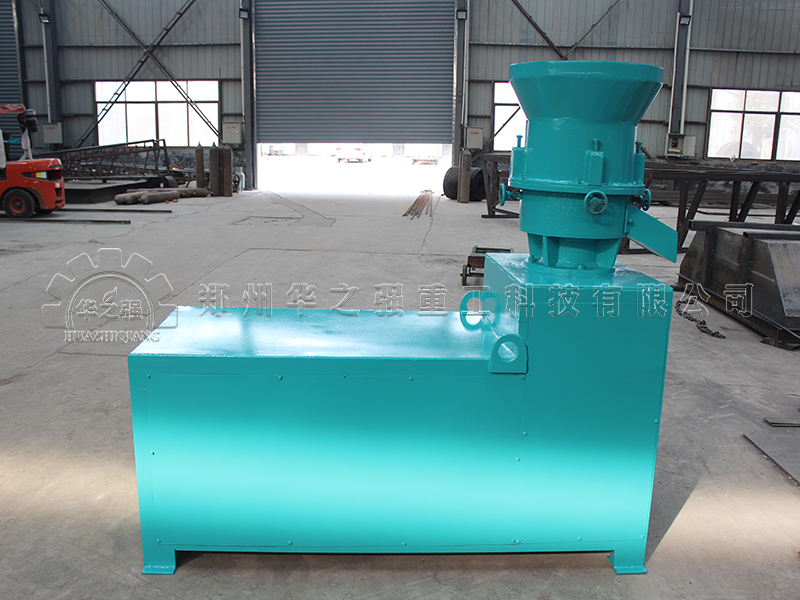

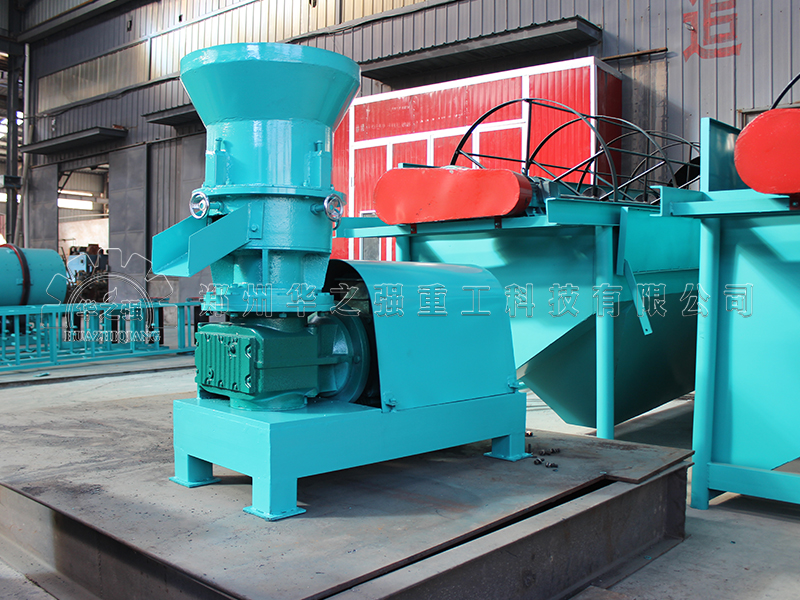

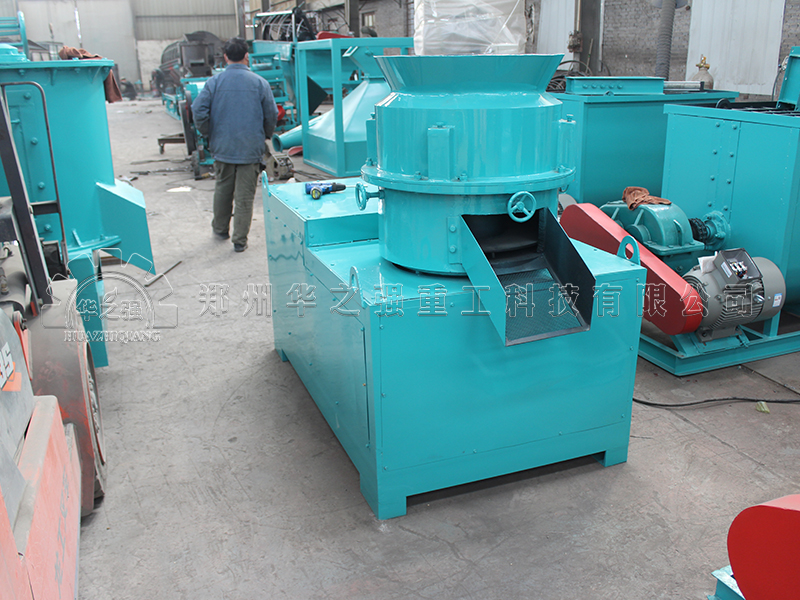

平模造粒機
用途與特點：
平模造粒機采用直導傳動形式，在摩擦力的作用下使壓輥?zhàn)赞D(zhuǎn)，粉狀物料在壓輥的擠壓下從模具孔中擠出，經過甩料盤將成品柱狀顆粒送出（柱狀顆粒長度可以通過調整切刀控制長度，同時也可將圓柱顆粒拋圓整形為圓球形顆粒）。平模造粒機主要是應用于生物有機肥柱狀顆粒的生產，養殖業飼料顆粒的加工，具有耗電少、無振動、產量大、噪音低等特點?？蓮V泛用于肥料、飼料、水產養殖等領域。

Flat Die Granulator Machine
Use and Features:

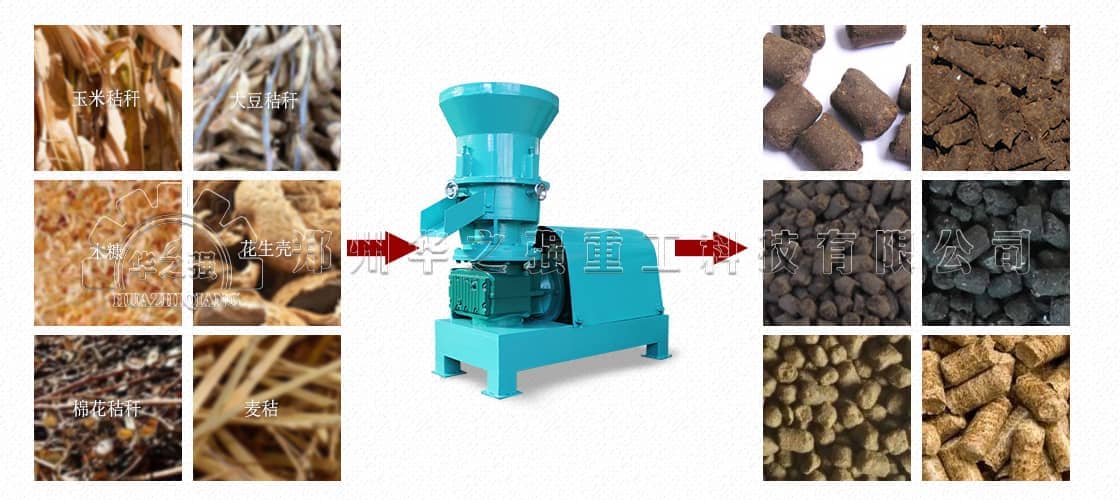

The Flat Die Granulator Machine uses the straight guide transmission form, which makes the roller self-rotating under the action of friction force. The powder material is extruded from the hole of the mould press by the roller, and the cylindrical pellets come out through the disc (The cylindrical pellets length can be controlled by the cutter. Meanwhile, the cylindrical pellets can be polishing into round shape granules). The Flat Die Granulator is mainly used in the production of bio organic fertilizer pellet making, and the processing of feed pellets in breeding industry. Has the characteristics of less power consumption, no vibration, large output and low noise. It can be widely used in fertilizer, feed, aquaculture and other fields.

該機是我公司目前生產的主要（生物）有機肥生產設備之一，是我廠科技人員集國內外先進顆粒機的基礎上，以多年生產經驗反復研究、改進、精心制造的肥料機械，該機工藝優良，操作簡單，并設計出有不同型號多種機型，是肥料加工單位理想的加工機械。

4、 由于顆粒含水率低便于儲存，在水中能較長時間的保持原狀，大大提高物料的利用率。

技術參數

型    號	KP-150c	KP-250c	KP-300c	KP-350c	KP-400c
產量  (t/h)	0.08-0.1	0.5-0.7	0.8-1.0	1.1-1.8	1.8-2.5
成 粒 率(%)	>95	>95	>95	>95	>95
顆粒溫升(℃)	<30	<30	<30	<30	<30
功  率  (kw)	7.5	11	15	18.5	22
